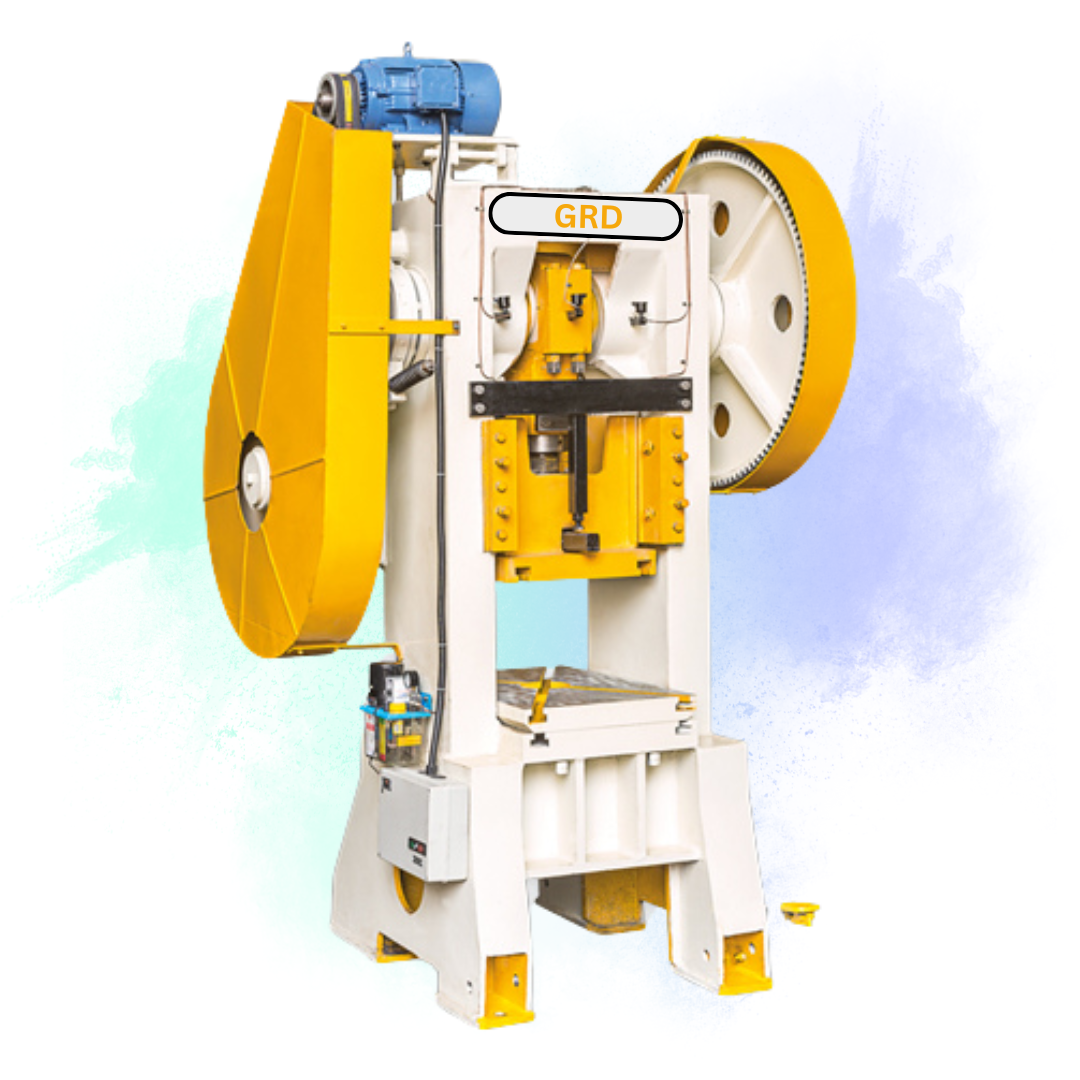

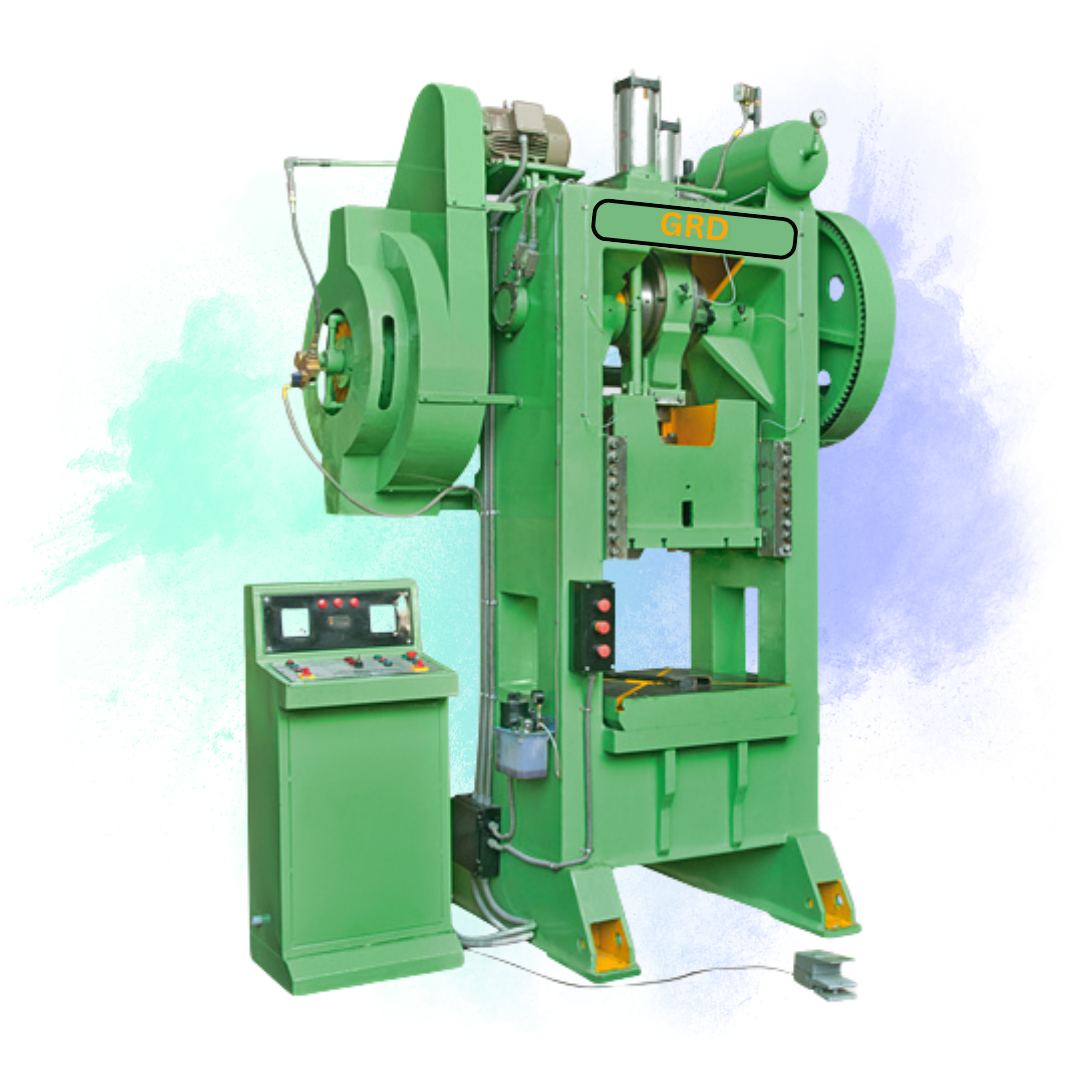

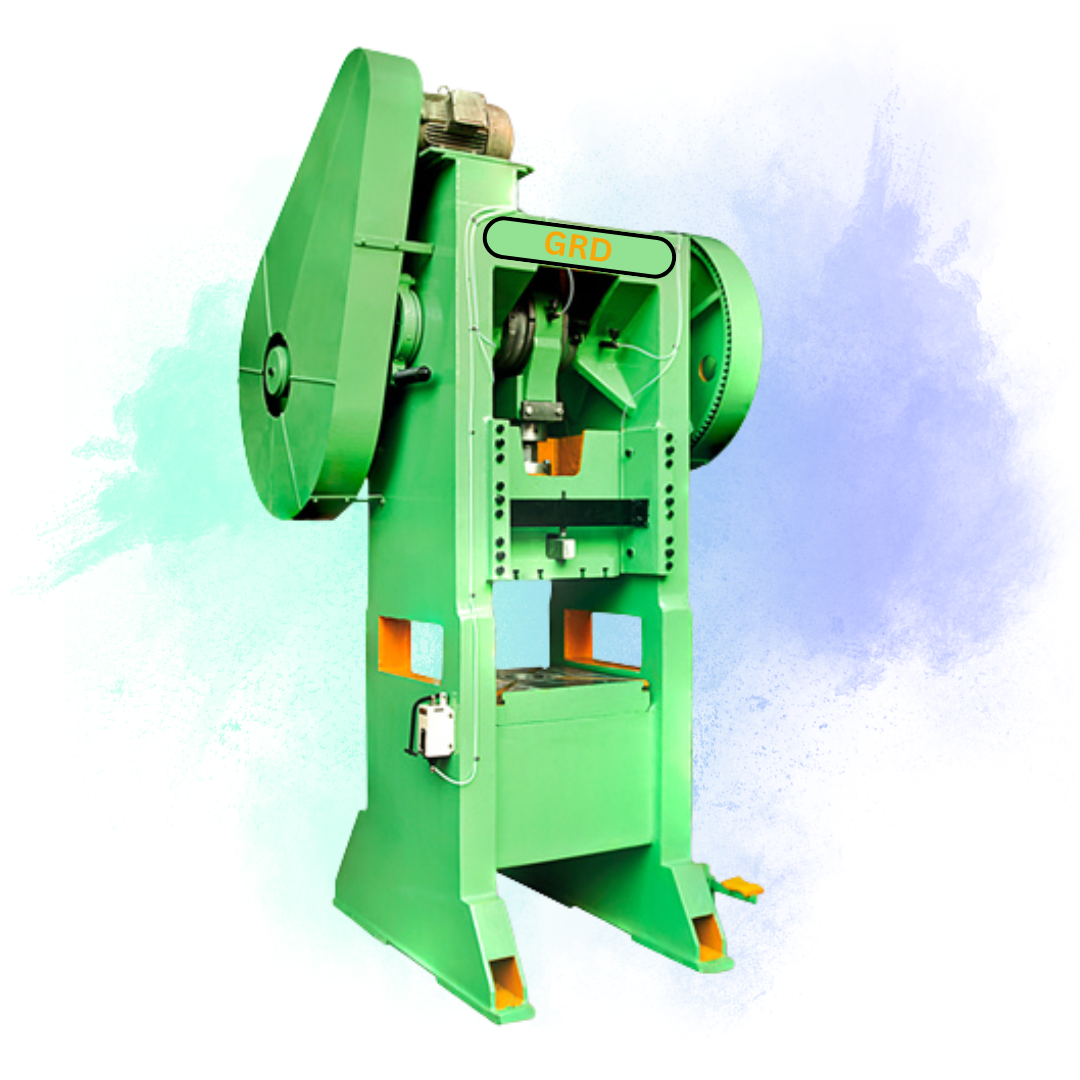

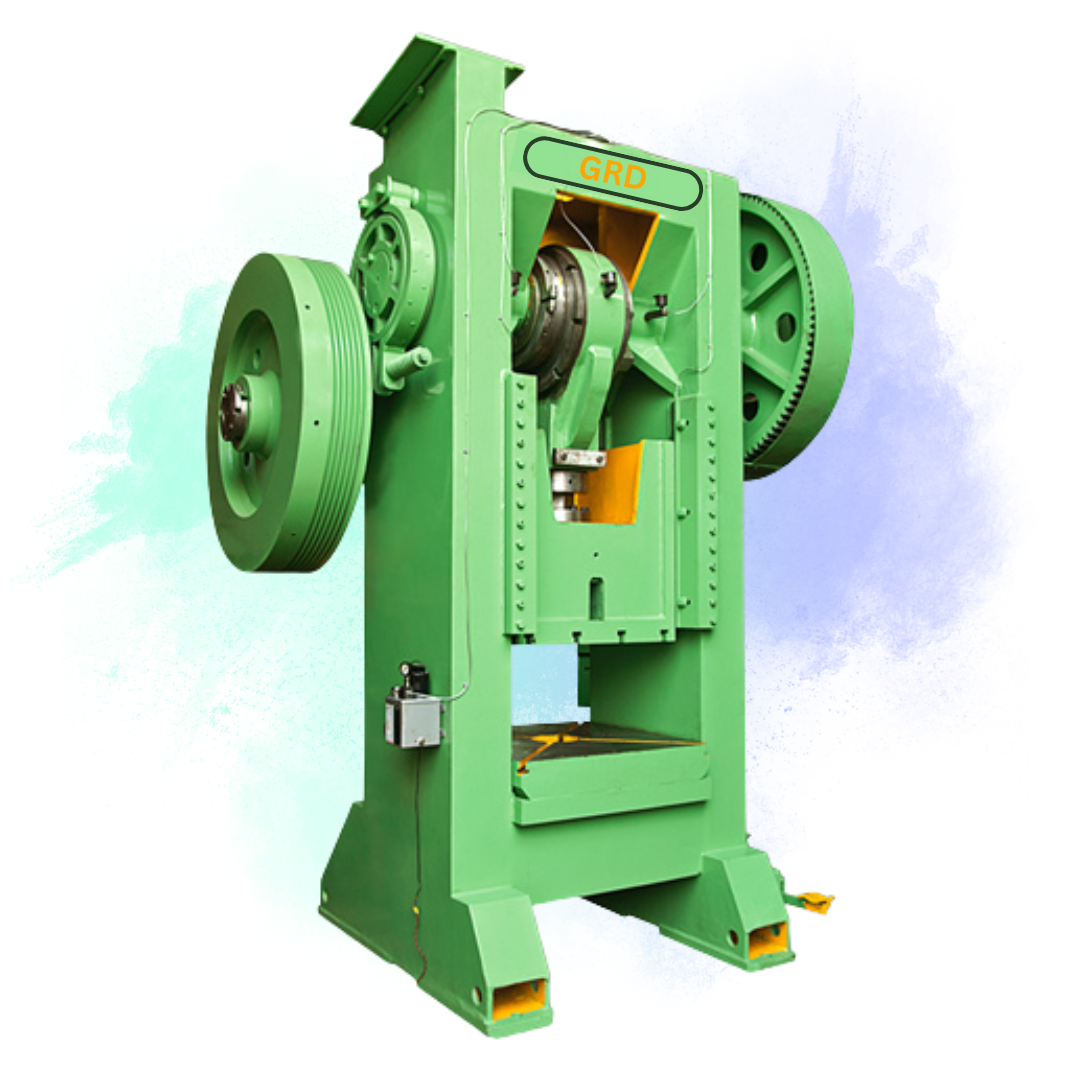

H Frame Type Power Press / Pillar Type Power Press

Product Description:

GRD Mechanical Works is a trusted name in manufacturing and supplying high-quality heavy-duty H-Frame Type Power Presses / Pillar Type Power Presses. Built for precision and performance, our machines are designed for long-lasting durability and efficiency in industrial applications.

We adhere to international standards and ensure each unit is tested for performance and safety.

Category: Range of Products

Description
Reviews (0)

Technical Specifications (Size in mm):

Model	10 Ton	20 Ton	30 Ton	50 Ton	75 Ton	100 Ton	150 Ton	200 Ton	250 Ton	300 Ton	400 Ton
Bed Size	306×365	355×410	410×460	460×510	522×575	586×640	640×690	765×820	865×920	915×915	1000×1000
Bed to Ram	230	270	310	335	385	455	565	600	612	765	815
Bolster Thickness	57	63	63	70	78	83	90	102	108	120	125
Crank Shaft Dia	75	85	100	120	135	170	185	204	230	254	286
Stroke Length	52	63	83	95	110	115	127	140	152	178	210
Gear Dia	455	560	610	660	760	910	1015	1220	1270	1320	1420
Fly Wheel Dia	535	665	765	841	920	1070	1148	1275	1326	1370	1475
Punch Bore	25	28	32	38	45	51	56	63	63	70	75
Floor to Top of Bed	800	800	800	800	800	800	800	800	800	800	800
Strokes / Minute	70	65	60	60	55	55	50	45	45	45	40
Power Required HP/RPM	1.5/1440	2/1440	3/1440	5/1440	7.5/1440	10/1440	15/1440	20/1440	25/1440	30/1440	40/1440
Approx. Weight (Kg)	800	1100	1550	1900	2850	3800	5300	8500	10000	13500
